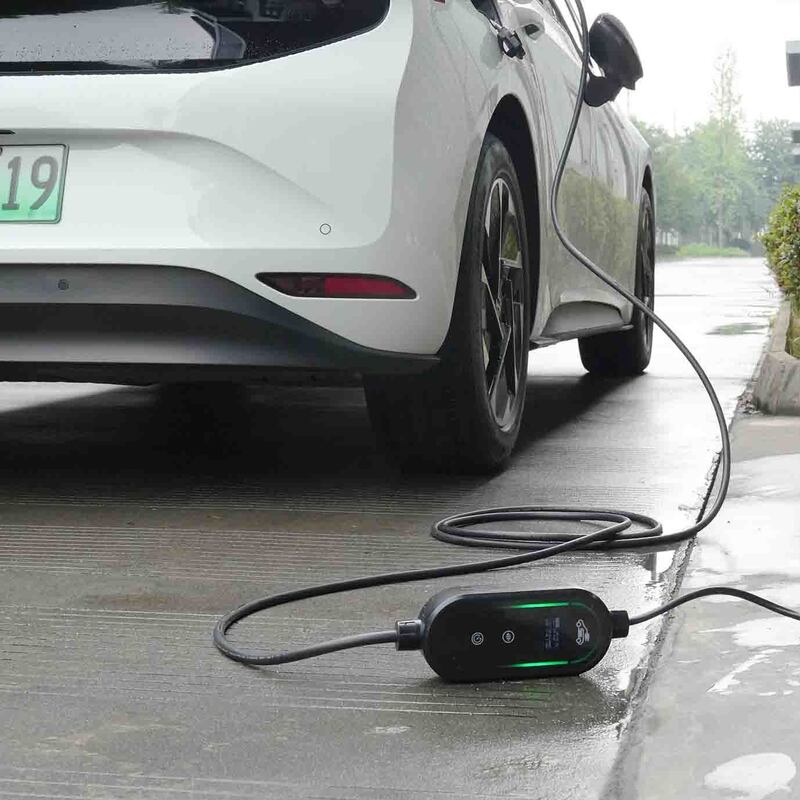

3 Phase 11kw Portable Home Ev Charger With CE Certification
Product Description
Meet the EVA11B—a powerful 11kW portable EV charger engineered for high-performance electric vehicles and 3 phase power systems.
Operating at 400V AC with a maximum output of 11kW , this charger delivers faster charging speeds ideal for EVs with larger batteries. It complies with IEC 62752:2016/COR1:2019 and carries CE certification, ensuring top-tier safety and compatibility across European markets.
The EVA11B integrates full protection mechanisms including over/under voltage, overload, short circuit, leakage, over-temperature, and lightning protection, plus a built-in Type B RCD for maximum safety. Despite its high power, it remains portable at just 3.2kg and features a compact, rugged design with an IP67 rating, performing reliably in temperatures from -30°C to 60°C. With an intuitive OLED screen, adjustable current, delay charging, and a 5-meter cable, the EVA11B brings professional-grade charging to your fingertips.
Key Advantage
Adjustable current
Delay charging setting
LED Light and Touch Key
Built-in RCD type B
Specificaiton
| Product Model EVA11B | |
| Input/Output voltage | AC 400V |
| Input frequency | 50/60Hz |
| Max.output power | 3-Phase up to 11kW(@400V 16A) |
| Max.output current | 16A for 3- Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤3.2kg |
| Colour&Material | Black;Tempered Glass,PC |
Features
LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
