| الاسم التجاري: | ANS |
| رقم الطراز: | EVA07B |
| الـ MOQ: | 1 |
| تفاصيل التعبئة: | 15.7 * 15 * 3.15 (بوصة) |
| شروط الدفع: | L/C ، T/T ، Western Union |

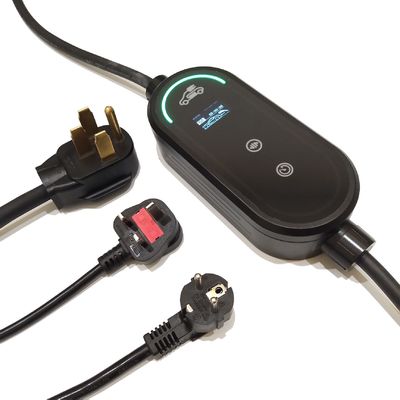

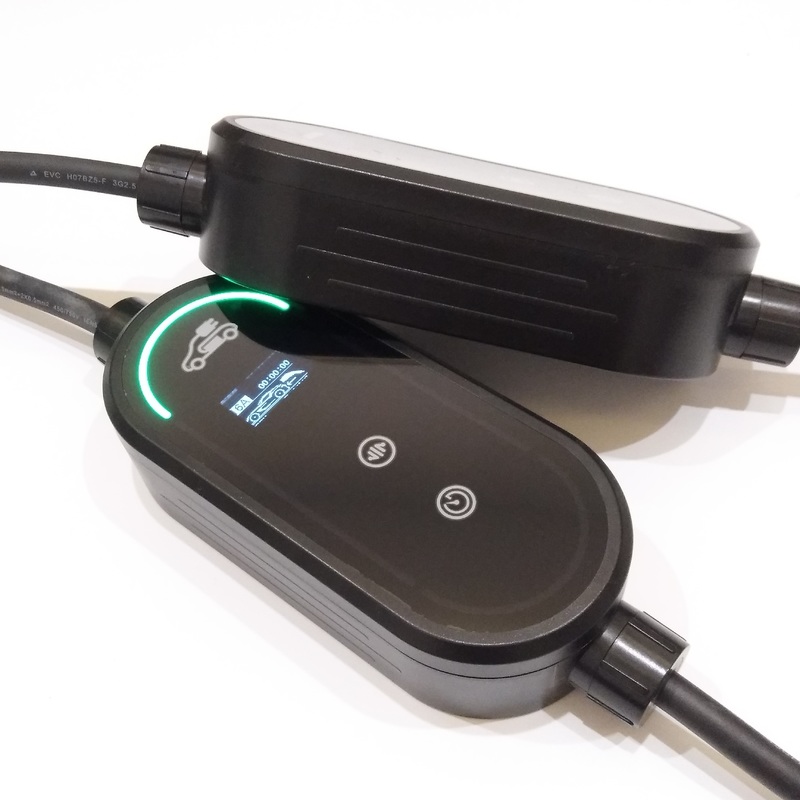

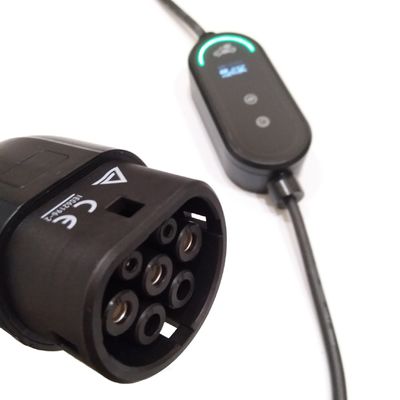

7kW Smart Portable EV Car Charger with 5m Cable IP67 CE Certified
Product Description
Experience the perfect balance of power and portability with the EVA07B 7.4kW portable EV charger. Designed for faster home charging and greater flexibility, it features:
Adjustable Current: Precisely control output up to 32A, allowing safe connection to a wider range of power sources, including dedicated home charging points.
Delay Charging Setting: Leverage time-of-use electricity rates efficiently, ensuring your vehicle is ready by morning while minimizing costs.
LED Light & Touch Key: Monitor charging status at a glance and control settings effortlessly with a modern touch interface.
Built-in RCD Type B: Guarantees superior safety for both user and vehicle, meeting the stringent requirements of higher-power charging.
This model is the go-to choice for EV owners seeking a powerful yet portable charging solution.
Specificaiton
| Product Model EVA07b | |
| Input/Output voltage | AC 110V/230V |
| Input frequency | 50/60Hz |
| Max.output power | 1 - Phase up to 7.4kW(@230V 32A) |
| Max.output current | 32A for 1 - Phase |
| Standard | IEC 62752:2016/COR1:2019 |
| Protection | |
| Certificate | CE |
| Over voltage protection | Yes |
| Under voltage protection | Yes |
| Over load protection | Yes |
| Short circuit protection | Yes |
| Leakage protection | Yes |
| Over - temp protection | Yes |
| Lightning protection | Yes |
| Function and Accessory | |
| LED indicators | Yes |
| OLED screen | Yes |
| RCD | Type B |
| Current adjustment | Yes |
| Delay charging adjustment | Yes |
| Ethernet/WIFI/4G/Bluetooth | No |
| Working environment | |
| Protection degree | IP 67 |
| Operation temperature | -30℃ - 60℃ |
| Relative humidity | ≤95%RH |
| Operating elevation limit | ≤2000m |
| Cooling | Natural air cooling |
| Standby power consumption | <0.5W |
| Mechanical parameters | |
| Charging cable | 5m (Standard configuration) |
| Control box | H×W×D = 200mm×90mm×52mm |
| Weight | ≤2.9kg |
| Colour&Material | Black;Tempered Glass,PC |
Features

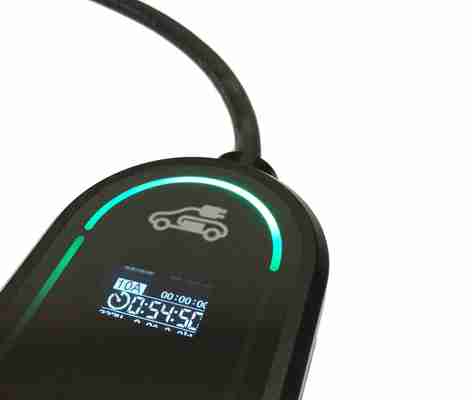

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
How to install
Step 1: Put the wall bracket in a proper position on the wall, mark theposition of the top two screw holes on the wall using a pencil.
Step 2: Put down the wall bracket and drill the holes just marked. insertthe expansion plugs and fix the wall bracket to the wall usingself-tapping
screws.
Step 3: First insert the device into the upper mounting hole of the wallbracket. Then into the round hole of the bottom bracket andfix it on the wall bracket using combination screws.
Installation cases
Packaging
Our Certification
Exhibition
Visits from Various Countries (looking forward to your arrival)
|
|
